Oropharynx Anatomy

Oropharyngeal anatomy imaging is performed during head and neck MRI and CT protocols to understand normal structural relationships, identify pathologic involvement, and stage oropharyngeal malignancy.

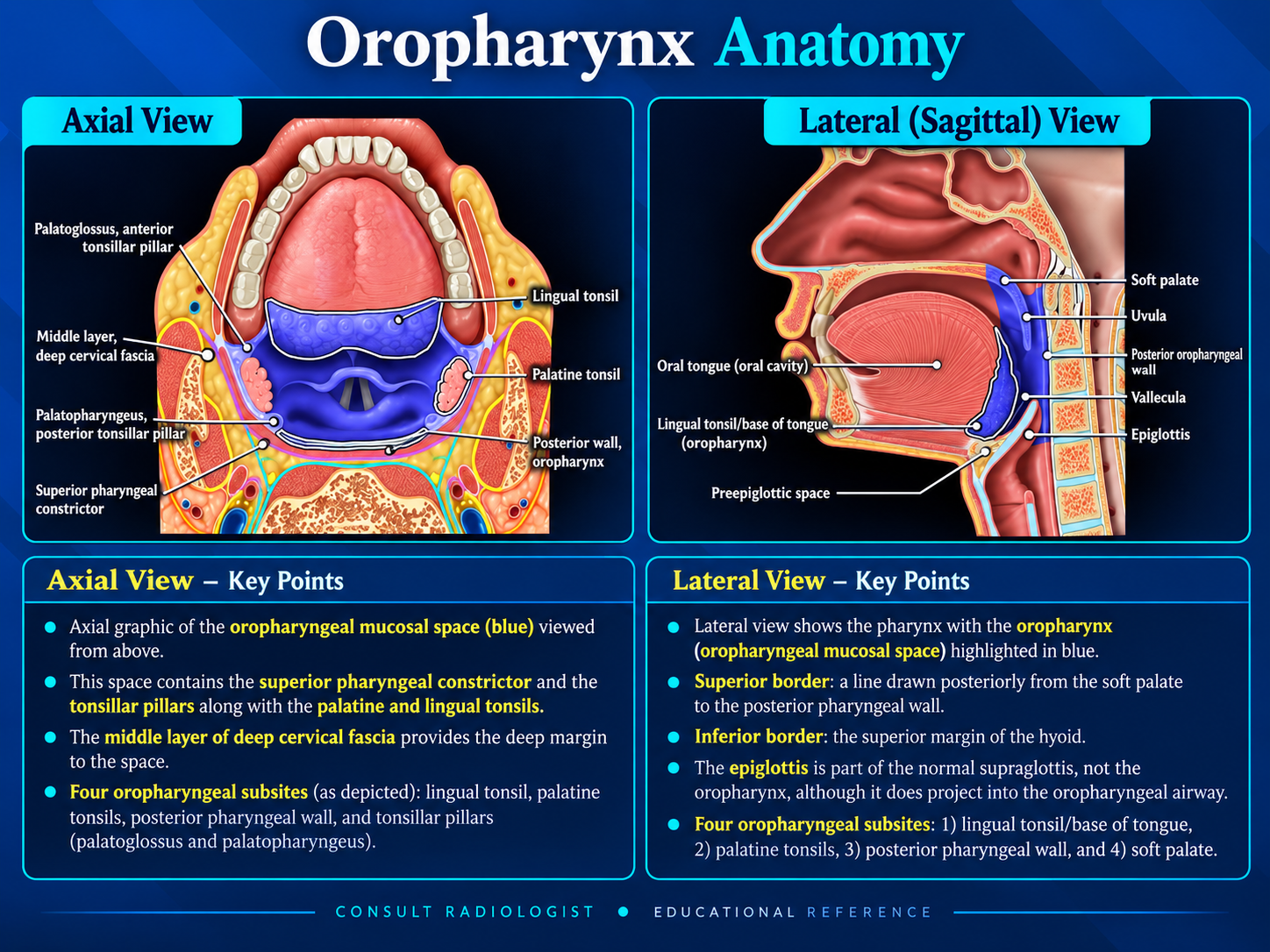

Key Images

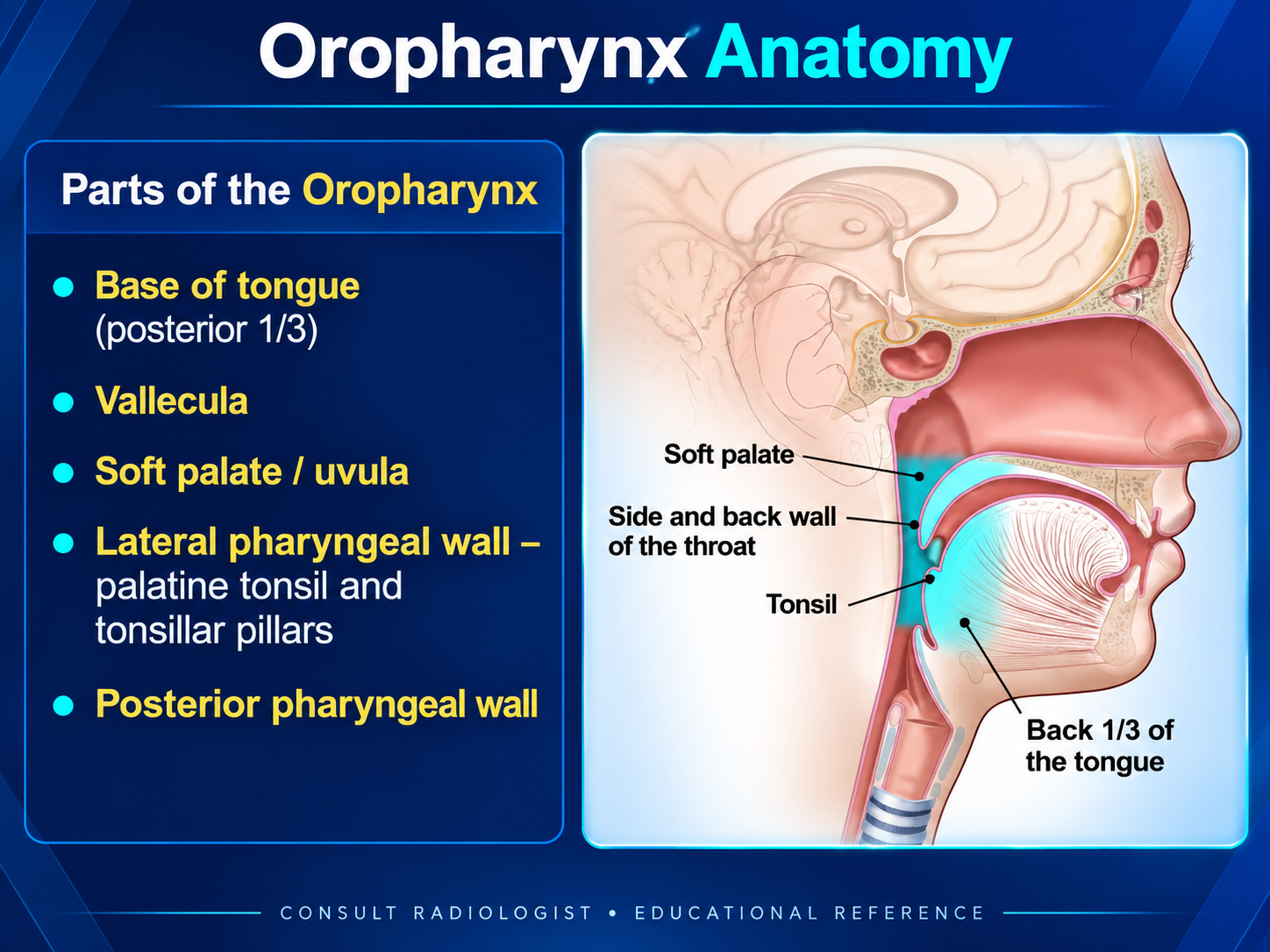

Image 2


Look For First
  • Circumvallate papillae anteriorly marking the oral cavity-oropharynx junction
  • Soft palate superior boundary at its free border separating oropharynx from nasopharynx
  • Hyoid bone or epiglottis tip inferiorly marking the oropharynx-hypopharynx border
  • Tonsillar fossae and pillars laterally as key anatomic landmarks
Key Image Findings
  • The oropharynx extends from the circumvallate papillae anteriorly to the posterior pharyngeal wall posteriorly, forming both respiratory and gastrointestinal tract continuity.
  • Superior boundary is defined by the soft palate free border, separating the oropharynx from the nasopharynx above; inferior boundary extends to the hyoid bone or epiglottis tip.
  • Lateral boundaries include the tonsillar fossae and anterior/posterior tonsillar pillars, which are easily visualized on axial MRI and CT as symmetric structures flanking the midline.
  • The base of tongue (posterior third) contains lingual tonsils and forms the anterior wall of the oropharynx above the epiglottis; it is best assessed on axial T1 and T2 MRI with multiplanar capability.
  • The tonsillar complex consists of paired palatine tonsils within the fossae bounded by anterior and posterior pillars; tonsils are normally intermediate T2 signal on MRI with variable lymphoid tissue enhancement.
  • The soft palate and uvula form the superior-anterior oropharyngeal boundary; the nasopharyngeal surface of the soft palate is excluded from oropharyngeal staging and classified as nasopharynx.
  • Key spaces include the glossotonsillar sulci (between base of tongue and palatine tonsils), valleculae (between base of tongue and lingual surface of epiglottis), and oropharyngeal isthmus (between palatoglossal arches).
  • The muscular layer continuity with the superior pharyngeal constrictor, tensor veli palatini, and levator veli palatini is best appreciated on coronal and sagittal MRI, important for assessing deep space invasion in malignancy.
Differential Diagnosis
  • Tonsillar enlargement versus tonsillar mass: benign lymphoid hyperplasia shows symmetric enlargement and intermediate homogeneous T2 signal; squamous cell carcinoma shows heterogeneous signal, asymmetry, and deep space invasion.
  • Lingual thyroid versus normal lingual tonsil: ectopic thyroid tissue shows avid enhancement and characteristic location at the midline base of tongue; normal lingual tonsils are bilateral and symmetric.
  • Epiglottis involvement: the lingual (anterior) surface of epiglottis is staged as laryngeal disease per TNM staging, while the oropharyngeal (posterior-superior) surface belongs to oropharynx.
  • Valleculae fluid collection versus pathologic mass: simple fluid is T2 hyperintense and non-enhancing; pathologic tissue shows enhancement and heterogeneous signal.
  • Soft palate hyperenhancement: normal enhancement is mild and symmetric; marked or asymmetric enhancement may indicate inflammatory or neoplastic process requiring further evaluation.
Discussion

The oropharynx is a unique anatomic region serving dual function as part of both the respiratory and gastrointestinal tracts, making it vulnerable to both aspiration and tumorigenesis from squamous mucosa.

Accurate staging of oropharyngeal malignancy requires precise knowledge of the boundaries—the anterior circumvallate papillae, superior soft palate, inferior hyoid/epiglottis, and lateral tonsillar pillars—to correctly stage depth of invasion.

The glossotonsillar sulci and valleculae are common sites of primary tumor origin and should be carefully scrutinized for asymmetry, enhancement, and early submucosal spread.

Deep space invasion beyond the muscular layer into the pterygomandibular raphe, parapharyngeal space, and skull base determines surgical resectability and is best assessed with multiplanar MRI.

The lingual tonsil at the base of tongue is frequently hyperplastic from chronic irritation or smoking and must be distinguished from true neoplastic disease by imaging characteristics and clinical correlation.

Rich vascular supply from ascending palatine and ascending pharyngeal arteries makes this region prone to bleeding complications if biopsied or if malignancy erodes into major vessels.

Reporting Pearls

When describing oropharyngeal anatomy, clearly identify the lesion location relative to the circumvallate papillae, tonsillar pillars, and soft palate border, and specifically note whether it arises from the base of tongue, palatine tonsil, soft palate, or pharyngeal wall, as this localization determines TNM staging and surgical approach.

Pitfalls
  • Confusing the epiglottis anterior (lingual) surface as oropharyngeal rather than laryngeal—for staging purposes, only the posterior/superior surface of the epiglottis is oropharyngeal, while the anterior/lingual surface is laryngeal.
  • Misinterpreting normal lingual tonsil hyperplasia as malignancy—bilateral symmetric enlargement with homogeneous intermediate T2 signal is typically benign, though clinical correlation and possibly biopsy may be needed.
  • Overlooking soft palate nasopharyngeal surface involvement—remember that the nasopharyngeal (superior) surface of the soft palate is classified as nasopharynx for staging and must not be attributed to oropharyngeal primary.
  • Failing to assess for deep space invasion into the pharyngeal constrictor and parapharyngeal space on multiple imaging planes—sagittal and coronal MRI are essential for detecting muscular layer penetration and lateral skull base involvement.
