Cavernous sinus invasion (Knosp classification)

Cavernous sinus invasion assessment in pituitary macroadenomas to guide operative planning and predict surgical resection outcomes and endocrinological remission rates.

Key Images


Look For First
  • Position of tumor margin relative to the medial tangent of the supraclinoid internal carotid artery on coronal MRI
  • Relationship of tumor to the intercarotid line (horizontal line between supraclinoid and intracavernous ICA)
  • Position relative to the lateral tangent of the intracavernous internal carotid artery
  • Whether tumor encases the intracavernous internal carotid artery
Key Image Findings
  • Grade 0: tumor remains entirely medial to the medial tangent line (0% surgical invasion, 0% histological invasion) — no cavernous sinus involvement.
  • Grade 1: tumor extends between the medial tangent and the intercarotid line (1.5% surgical invasion, 0% histological invasion) — minimal lateral extension with 83% gross total resection rate.
  • Grade 2: tumor extends between the intercarotid line and the lateral tangent (9.9% surgical invasion, 88% histological invasion) — moderate invasion with only 71% gross total resection rate.
  • Grade 3A: tumor extends lateral to the lateral tangent above the intracavernous internal carotid artery into the superior cavernous sinus compartment (26.5% surgical invasion, 86% histological invasion) — superior compartment involvement.
  • Grade 3B: tumor extends lateral to the lateral tangent below the intracavernous internal carotid artery into the inferior cavernous sinus compartment (70.6% surgical invasion, 86% histological invasion) — inferior compartment involvement with worse surgical outcomes.
  • Grade 4: complete encasement of the intracavernous internal carotid artery (100% surgical invasion, 100% histological invasion) — circumferential tumor surrounding the artery.

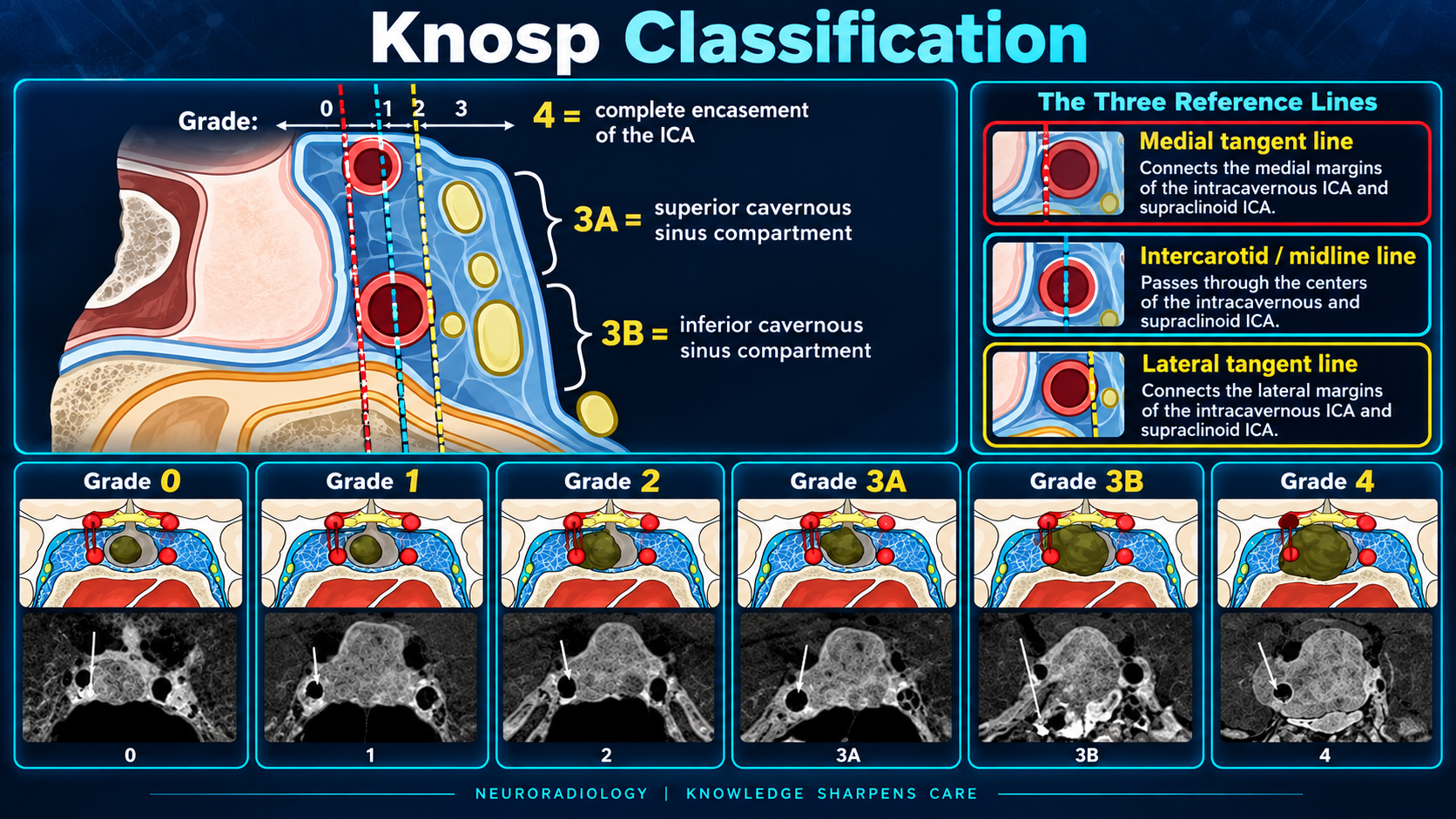

  • The three reference lines (medial tangent, intercarotid line, lateral tangent) are drawn on coronal MR images using the supraclinoid and intracavernous segments of the internal carotid artery as anatomical anchors.
  • Grade 3B invasion predicts 64% gross total resection and 0% endocrinological remission, making preoperative identification critical for counseling.
Differential Diagnosis
  • Grade 1 vs. Grade 2 invasion: Grade 1 does not cross the intercarotid line and shows 83% GTR vs. Grade 2 which does cross and shows only 71% GTR; location relative to the intercarotid line is the distinguishing feature.
  • Grade 3A vs. Grade 3B: Both extend lateral to the lateral tangent, but 3A is above the intracavernous ICA (26.5% surgical invasion) while 3B is below (70.6% surgical invasion); vertical position relative to intracavernous ICA segment is critical.
  • Grade 2 vs. Grade 3 invasion: Grade 2 shows 9.9% surgical invasion and does not cross the lateral tangent, while Grade 3 crosses the lateral tangent with 26.5-70.6% surgical invasion; lateral tangent is the key discriminator.
  • Grade 3 vs. Grade 4 invasion: Grade 3 shows partial lateral extension with variable outcomes, while Grade 4 shows complete encasement of the intracavernous ICA with 100% surgical invasion and 0% remission; degree of circumferential involvement distinguishes these.
Discussion

The Knosp classification provides objective anatomical criteria for assessing cavernous sinus invasion, with direct implications for surgical resection rates and endocrinological remission that guide preoperative counseling.

Grade 3B tumors have significantly higher surgical invasion rates (70.6%) and zero endocrinological remission compared to 3A (26.5% invasion, 67% remission), making the superior-inferior distinction critical for outcome prediction.

The intercarotid line is a key anatomical landmark; tumors extending beyond it (Grade 2+) show markedly higher histological invasion rates (88-100%) compared to Grades 0-1 (0%).

Grade 4 (complete ICA encasement) predicts impossibility of gross total resection (0% GTR, 0% remission), making these patients candidates for adjuvant radiation or alternative treatments.

Interobserver reliability concerns have led to development of alternative grading systems; however, Knosp remains widely used and reproducible when anatomical reference lines are carefully constructed.

Low Knosp grades (0-1) achieve high surgical remission rates (83-88%), justifying aggressive surgical intervention, while Grade 3B and Grade 4 require different operative strategies or multimodal therapy.

Reporting Pearls

Clearly state the Knosp grade with specific reference to which anatomical line the tumor extends to or beyond (e.g., "Grade 2 — tumor extends to but not beyond the lateral tangent of the intracavernous internal carotid artery"), and when Grade 3, specify whether 3A (above) or 3B (below) the intracavernous ICA to optimize surgical planning.

Pitfalls
  • Failing to precisely identify the supraclinoid and intracavernous segments of the internal carotid artery on coronal MRI — these are the essential anatomical references for drawing the three classification lines.
  • Misconstruing tumor displacement of the cavernous sinus as invasion; Grade 0-1 tumors may displace the ICA medially without true invasion.
  • Incorrectly distinguishing Grade 3A from 3B by failing to determine whether tumor extends above or below the intracavernous ICA — this distinction has major implications for remission rates.
  • Over-reliance on Knosp grade alone without considering tumor consistency, hormonal activity, and patient factors; Knosp predicts invasion likelihood but does not guarantee gross total resection success.
