Other / Other / MRI

Jugular fossa masses

Jugular fossa masses are often discovered incidentally on cross-sectional imaging (CT/MRI) performed for skull base or cranial nerve evaluation. They arise from structures within the jugular fossa (paragangliomas, schwannomas, meningiomas) or extend from adjacent tissues.

Key Images

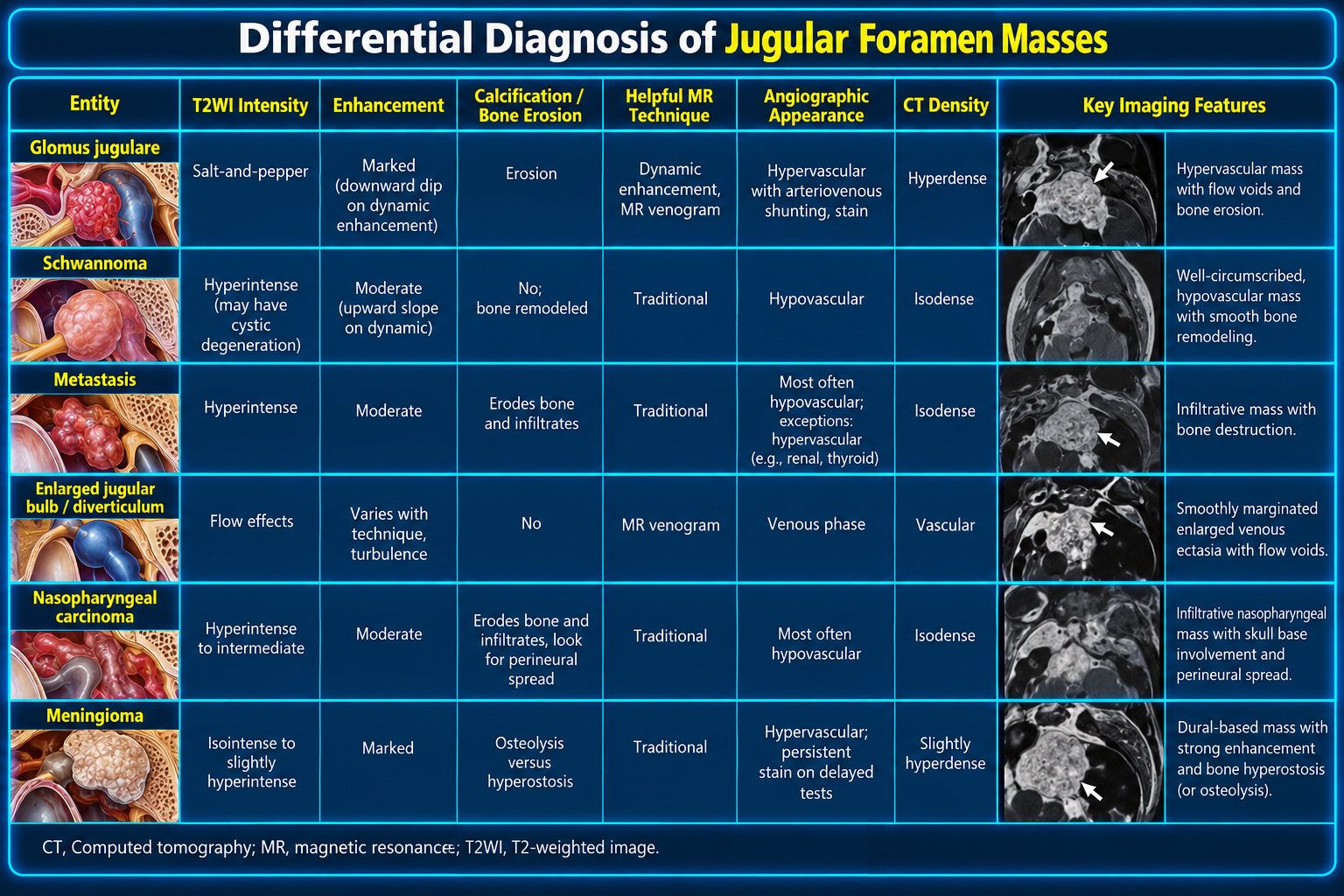

A0Beb8D4 A3C8 4D64 9E6C Da408710380D

Look For First
  • Mass in or expanding the jugular fossa/foramen region on CT or MRI
  • Involvement of middle ear with possible ossicular displacement or conductive hearing loss symptoms
  • Cranial nerve palsies affecting CN IX, X, XI (glossopharyngeal, vagus, accessory nerves causing jugular foramen syndrome)
  • Pulsatile tinnitus suggesting hypervascular mass such as paraganglioma
Key Image Findings
  • On contrast-enhanced MRI, jugular paragangliomas typically show homogeneous enhancement with prominent feeding vessels and flow voids; they are the most common intrinsic jugular fossa lesion.
  • Schwannomas appear as well-defined masses on MRI with T2 hyperintensity and variable enhancement, arising from CN IX, X, or XI within the jugular fossa.
  • Meningiomas can be intrinsic (arising from dura within fossa) or extrinsic (extending into fossa) and show dural tail sign with homogeneous dural enhancement on contrast MRI.
  • CT imaging is superior for detecting bony erosion, cortication, scalloping, or destruction of the jugular foramen margins which helps distinguish aggressive from benign pathology.
  • Large masses with intracranial extension may compress the brainstem or obstruct CSF flow, visible on sagittal MRI as mass effect on the fourth ventricle or cisterna magna.
  • On imaging, pulsatile tinnitus-causing lesions (especially paragangliomas) often show hyperenhancement and enlarged feeding vessels on angiography or dynamic MRI sequences.
  • Extrinsic masses such as temporal bone tumors, epidermoid cysts, or chondrosarcomas originate outside the jugular fossa but extend inward; their extra-axial origin is evident on coronal and axial MRI.
  • Pseudotumors from high-riding jugular bulb, jugular bulb diverticulum, or normal asymmetry are distinguished by their continuity with the internal jugular vein without mass effect or enhancement.
Differential Diagnosis
  • Jugular paraganglioma vs schwannoma: Paragangliomas are typically more hypervascular with prominent feeding vessels and more aggressive appearance; schwannomas show homogeneous enhancement and arise from nerve (CN IX, X, XI).
  • Meningioma vs schwannoma: Meningiomas show dural tail sign with broad dural attachment; schwannomas are eccentric to dura with smooth margins.
  • Intrinsic jugular fossa mass vs extrinsic mass extending into fossa: Intrinsic masses (paraganglioma, schwannoma, meningioma) originate within; extrinsic masses (chondrosarcoma, epidermoid, temporal bone tumor) show origin from adjacent tissues.
  • Paraganglioma vs metastatic disease: Paragangliomas are slow-growing hypervascular masses; metastases or lymphoma typically appear heterogeneous without prominent feeding vessels and occur in clinical context of known primary malignancy.
  • Jugular bulb pseudotumor vs true mass: Pseudotumors from high-riding jugular bulb or diverticulum show continuous flow signal (flow void or arterial/venous phase enhancement) and lack mass effect on adjacent structures.
  • Cholesteatoma vs other extrinsic masses: Cholesteatoma shows restricted diffusion (DWI hyperintensity) on MRI and bony erosion on CT; other extrinsic masses do not restrict diffusion.
Discussion

Jugular foramen syndrome (unilateral palsy of CN IX-XI) is a classic presentation of jugular fossa masses; when present, imaging should specifically assess for mass effect on these nerves at the level of the jugular foramen.

Pulsatile tinnitus and conductive hearing loss are the most common presenting symptoms because masses expand into the middle ear and displace ossicles or occlude the Eustachian tube.

Paragangliomas are the most common jugular fossa lesion and are highly vascular; they may require preoperative angiography and embolization due to bleeding risk during resection.

Contrast-enhanced MRI is superior for tissue characterization and cranial nerve involvement assessment, while CT is essential for bony anatomic detail and surgical planning.

Slow growth of most jugular fossa masses means asymptomatic incidentally discovered lesions may be followed conservatively with serial imaging rather than immediately treated.

Intracranial extension with brainstem compression or fourth ventricle obstruction indicates need for urgent intervention due to hydrocephalus and raised intracranial pressure risk.

Reporting Pearls

When reporting a jugular fossa mass, clearly specify: (1) whether the mass is intrinsic or extrinsic to the fossa, (2) degree of middle ear involvement and ossicular displacement, (3) relationship to CN IX/X/XI with associated mass effect, (4) presence of prominent feeding vessels (suggesting vascular paraganglioma), (5) degree of intracranial extension and brainstem/fourth ventricle compression, and (6) bony erosion pattern on CT (aggressive vs benign appearance).

Pitfalls
  • Mistaking a normal high-riding jugular bulb or diverticulum for a true mass; these are vascular pseudotumors identified by continuity with the internal jugular vein and lack of mass effect.
  • Underestimating the vascular supply of paragangliomas on standard MRI without dynamic angiographic sequences; feeding arteries may not be apparent on conventional imaging.
  • Failing to assess for intracranial extension and brainstem compression on sagittal MRI; large masses can obstruct CSF flow and cause hydrocephalus despite initial presentation with only cranial nerve symptoms.
  • Relying on MRI alone without CT for surgical planning; CT is essential for delineating bony erosion, foramen enlargement, and temporal bone involvement that guides surgical approach.
Source: Reference source
