Tympanic paragangliomas

Tympanic paragangliomas (previously glomus tympanicum tumors) are the most common middle ear tumors, presenting typically in women over 40 years old with pulsatile tinnitus, otalgia, or conductive hearing loss.

Key Images

Look For First

Soft tissue mass at the cochlear promontory on CT
Enhancement on contrast-enhanced imaging
Intact jugular bulb (distinguishes from jugular paraganglioma)

Key Image Findings

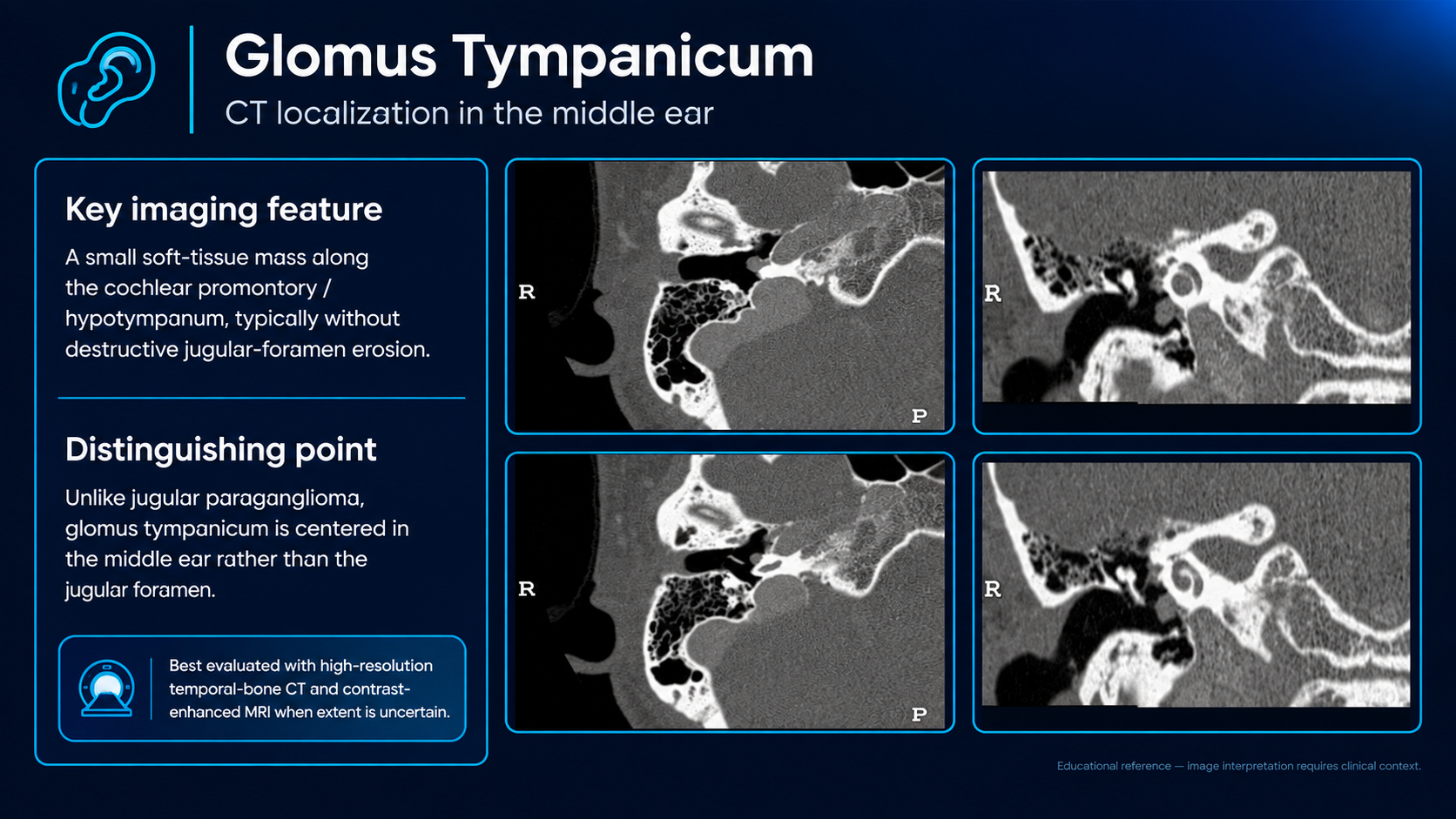

CT is the best modality for assessment and shows a soft tissue mass arising lateral to the cochlear promontory from the Jacobson nerve origin
Large tumors may fill the middle ear cavity and invade the Eustachian tube or extend into the mastoid region
Ossicles may be encased or destroyed, depending on tumor size and aggressiveness
Surrounding bony destruction may be present in aggressive tumors, indicating permeative growth
The intact jugular bulb with normal location is a key distinguishing feature that excludes jugular paraganglioma
Tympanic paragangliomas are classified as Fisch type A tumors, limited to the middle ear cavity without extension beyond
Post-contrast imaging demonstrates enhancement typical of neuroendocrine tumors arising from vascular paraganglia

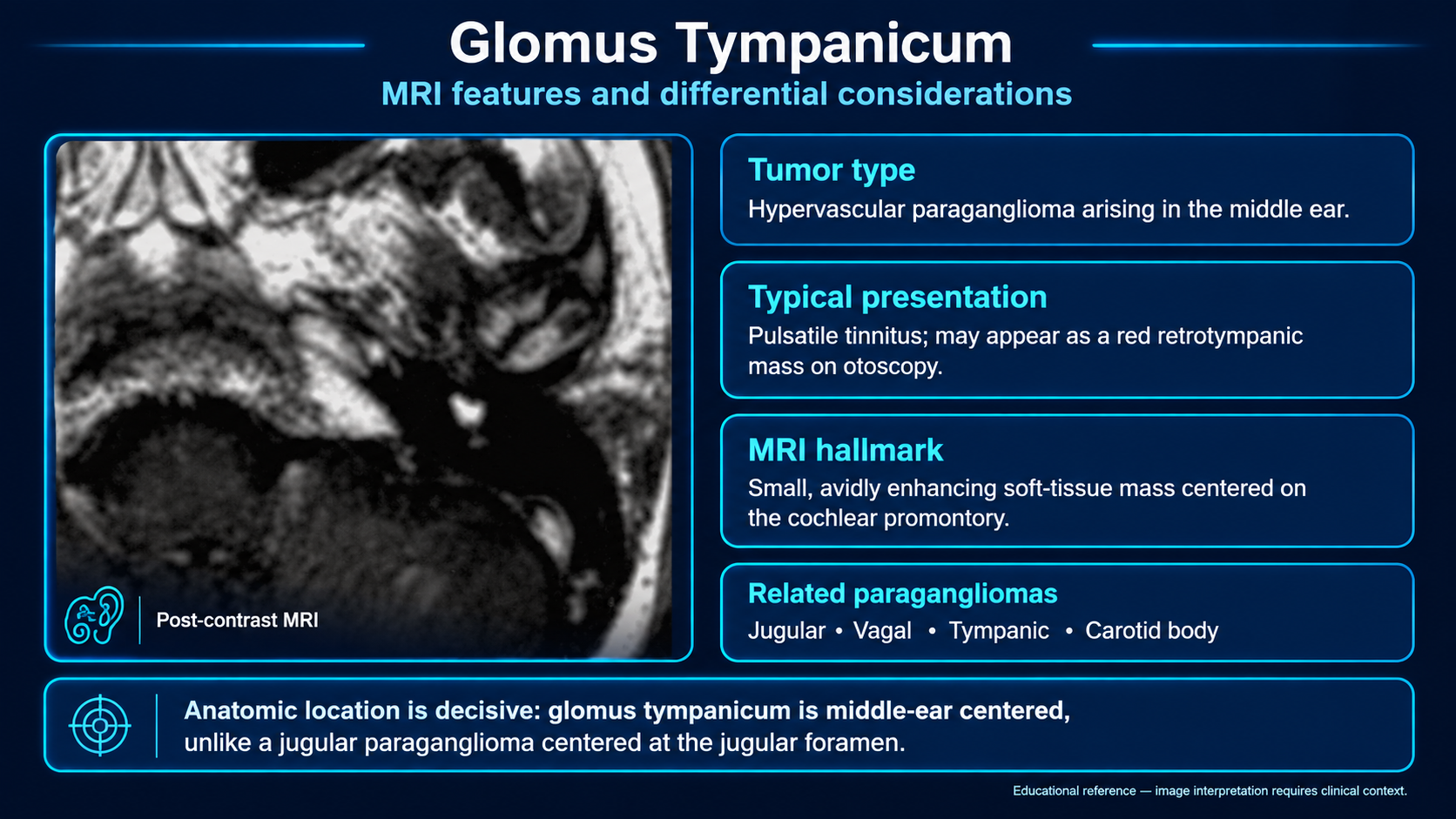

MRI may be used adjunctively and shows enhancement on post-contrast T1 imaging, distinguishing them from non-enhancing congenital cholesteatomas

Differential Diagnosis

Jugular paraganglioma—distinguished by permeative destruction of the floor of the middle ear, involvement of the jugular foramen, and a dehiscent jugular bulb
Facial nerve schwannoma—presents as a pedunculated mass arising from the facial nerve along the tympanic segment, may be isodense/hypodense on CT without the vascular enhancement of paraganglioma
Congenital cholesteatoma—shows no enhancement on post-contrast T1 MRI and lacks the enhancing soft tissue appearance of paraganglioma

Discussion

Tympanic paragangliomas arise from paraganglia associated with the Jacobson nerve at the cochlear promontory, making their location pathognomonic

Female predominance (3:1 ratio) and late-life presentation (typically after age 40) are typical epidemiologic features

Pulsatile tinnitus is the most characteristic clinical symptom, reflecting the highly vascular nature of these neuroendocrine tumors

Surgical resection is the treatment of choice, with imaging crucial for determining extent and relationship to critical structures

Classification as Fisch type A tumors (limited to middle ear) provides prognostic information regarding morbidity and mortality compared to larger paragangliomas

Ossicular preservation or encasement versus destruction has surgical implications for hearing outcomes

Reporting Pearls

Report the location relative to the cochlear promontory, assess for middle ear cavity involvement and ossicular status, specify any extension into the mastoid or Eustachian tube, and document the jugular bulb location and integrity to exclude jugular paraganglioma.

Pitfalls

Confusing 'glomus' terminology with glomus bodies or subcutaneous glomangiomas, leading to diagnostic uncertainty—use the precise term 'tympanic paraganglioma'
Missing ossicular status and encasement versus destruction, which affects surgical approach and post-operative hearing
Failing to clearly establish an intact, normally-positioned jugular bulb, risking misclassification as jugular paraganglioma with different prognosis
Overlooking small tumors at the cochlear promontory on initial review, especially if imaging is not specifically targeted to the middle ear
